Nama Produk :

Vibration Meter Smart Sensor AS63B / TLP 082217294199

Deskripsi Singkat :

Jual Vibration Meter Smart Sensor AS63B

Pengiriman :

JNE Reguler, J&T Express, WAHANA, POS Ind., TIKI

Bagikan ke :

Deskripsi Produk:

Rp 4.000.000,-

Jual Vibration Meter Smart Sensor AS63B, Info Vibration Meter Smart Sensor AS63B, Harga Vibration Meter Smart Sensor AS63B, Spek Vibration Meter Smart Sensor AS63B, Beli Vibration Meter Smart Sensor AS63B di 082112325856 / 082217294199, JUal Samrt Sensor AS63B,

Tester Getaran dari Smart Sensor. Mendapatkan sertifikat kalibrasi

SMART SENSOR Vibration meter uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.

Features:

1. LCD display measurement result and conditions directly
2. Measure acceleration(m/s2 peak), velocity ( mm/s ms(, and displacement (mm p-p)
3. Selective vibration characteristic
3. Uses hi-sense of vibration sensor, measuring accurately
4. Equipped two probes ( S and L) to adapt the different measurement requirement
5. Provides a magnetic probe to fit the condition uneasy hold on by hand
6. Low battery indication
7. Auto turn off button
8. LCD back light function
9. Maximum value hold function
10. Temperature unit °C / °F selection

Technical parameter	Technical specification
Vibration pickup	Piezoelectric ceramic accelerometer (shear-type)
Measurement range of acceleration	0.1~199.9m/s2 peak
Measurement range of velocity	0.1~199.9mm/s rms
Measurement range of displacement	0.001~1.999mm p-p (Velocity and displacement range is limited by acceleration199.9m/s2)
Measurement accuracy	±5%+2digits
Measurement frequency range of acceleration	10Hz～1KHz (LO) 1KHz～15KHz (HI)
Measurement frequency range of velocity	10Hz～1KHz (LO)
Measurement frequency range of displacement	10Hz～1KHz (LO)
Displays update cycle	1 seconds
LCD display	3 1/2 digits display
Single output	AC output 2 V peak (display full scale) Load impedance 10KΩor more earphones can be connected
Power supply	9V battery (not include)
Stand-by current	≤15μA
Operating current	≤25mA
Auto power-off function	Turns off automatically after 60 seconds
LCD backlight function	7 seconds
Operating temperature range	0~40℃
Operating humidity range	30~90%RH
Low battery indication	6.4V±0.2V
Product Dimensions	70x30x150mm
Product Weight	137g (not including battery)
Temperature range	-10C~80C
Temperature accuracy	±2C
Packing Contents	1pc Vibration meter 1pc handle sub-unit 1pc detector probe attachment "L" 1pc detector probe attachment "S" 1pc Magnetic probe 1pc English user's manual 1pc Long probe 1pc Aluminum packing box

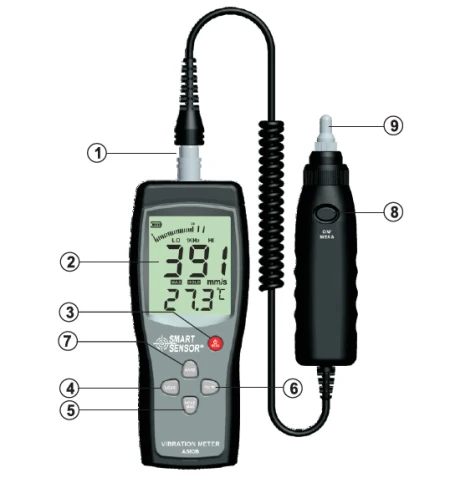

Diagram and LCD display
	1. Sub-unit handle connector ( with directionality) 2. LCD display 3. ON/OFF measure button, press for turn on. In measuring procedure, press for measuring, release for hold the reading 4. Frequency character selection botton.( for acceleration) 5. Maximum value locks button 6. Temperature unit interchange button 7. Measuring mode ( Acceleration / Velocity Displacement ) select button 8. Sub-unit handle on/off measure button, press for turn, In measuring procedure, proess for measuring, release for hld the reading 9. Detector head ( Selective between probe head attachments " S"/"L" and Magnetic proble.

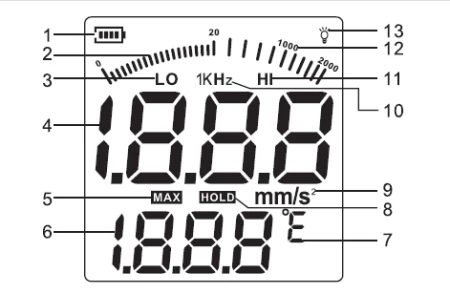

	1). Battery mark shows current residual battery power. Has following 5 levels: :battery is sufficient :battery is comparative sufficient :battery is nearly deficient :battery is nearly exhausted, need to have a replacement battery is exhausted completely. 2). Dynamic bar graph display measuring value 3). Low frequency symbo.(10Hz~1Hz) 4). Measurred value display 5). Take the maximum value 6). Temperature and maximum value display 7). Temperature unit display, "C" for Celsius scale, " F" for the Fahrenheit scale 8). Value hold 9). When measuring acceleration, LCD will display acceleration uit " ,M/S2" When measuring velocity, LCD will display velocity unit " mm/s" When measuring displacement, LCD will display displacement unit " mm" 10). 1KHz indication 11) High frequency symbol. (1kHz ~ 15kHz) 12). The symbol of the range of the measuring value. 13). Backlight icon. the back light will be active for 7 seconds upon the button operations
